Syringe nozzle (Full length 48mm)

Syringe nozzle (Full length 48mm)

Features

Low-cost nozzle with stainless-steel needle bonded to polypropylene boss with epoxy resin. Customized for syringe applications.

Applicable Devices

Liquid-discharging valves (for dispensing of small and very small amounts) and syringe-type dispensers for one-component liquids

Specifications

Product Name Needle Material Needle O.D. Needle I.D. Needle Material
27G x Full length 48mm PP Φ0.41 Φ0.19 SUS304
26G x Full length 48mm Φ0.45 Φ0.23
25G x Full length 48mm Φ0.51 Φ0.26
24G x Full length 48mm Φ0.55 Φ0.30
23G x Full length 48mm Φ0.63 Φ0.33
22G x Full length 48mm Φ0.71 Φ0.41
21G x Full length 48mm Φ0.81 Φ0.51
20G x Full length 48mm Φ0.88 Φ0.58
19G x Full length 48mm Φ1.06 Φ0.70
18G x Full length 48mm Φ1.26 Φ0.90
17G x Full length 48mm Φ1.48 Φ1.12
16G x Full length 48mm Φ1.61 Φ1.25
15G x Full length 48mm Φ1.81 Φ1.45
14G x Full length 48mm Φ2.11 Φ1.69
13G x Full length 48mm Φ2.41 Φ1.99
Size 27G x Full length 48mm 26G x Full length 48mm 25G x Full length 48mm
Boss O.D./Material PP
Needle O.D. Φ0.41 Φ0.45 Φ0.51
Needle I.D. Φ0.19 Φ0.23 Φ0.26
Needle Material SUS304
Size 24G x Full length 48mm 23G x Full length 48mm 22G x Full length 48mm
Boss O.D./Material PP
Needle O.D. Φ0.55 Φ0.63 Φ0.71
Needle I.D. Φ0.30 Φ0.33 Φ0.41
Needle Material SUS304
Size 21G x Full length 48mm 20G x Full length 48mm 19G x Full length 48mm
Boss O.D./Material PP
Needle O.D. Φ0.81 Φ0.88 Φ1.06
Needle I.D. Φ0.51 Φ0.58 Φ0.70
Needle Material SUS304
Size 18G x Full length 48mm 17G x Full length 48mm 16G x Full length 48mm
Boss O.D./Material PP
Needle O.D. Φ1.26 Φ1.48 Φ1.61
Needle I.D. Φ0.90 Φ1.12 Φ1.25
Needle Material SUS304
Size 15G x Full length 48mm 14G x Full length 48mm 13G x Full length 48mm
Boss O.D./Material PP
Needle O.D. Φ1.81 Φ2.11 Φ2.41
Needle I.D. Φ1.45 Φ1.69 Φ1.99
Needle Material SUS304
O. D. : Outer diameter   I. D. : Inner diameter

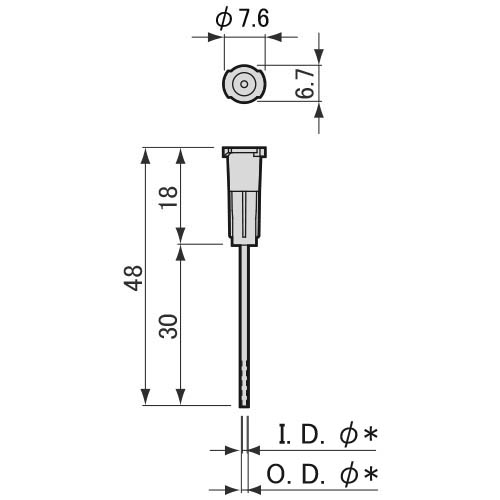

Dimensions

Syringe nozzle (Full length 48mm)
(mm)  O. D. : Outer diameter   I. D. : Inner diameter
