Precision taper nozzle

Precision taper nozzle

Features

The precisely machined one-piece molded nozzle ensures highly accurate dispensing of very small amounts. The tapered tube inside the nozzle allows for smooth liquid flow. The double thread feature ensures a tight connection.

Applicable Devices

Liquid-discharging valves (for dispensing of small and very small amounts), and syringe-type dispensers for one-component liquids

Specifications

Product Name Material Needle O.D. Needle I.D.
PNZ-020 SUS303 Φ0.30 Φ0.20
PNZ-030 Φ0.40 Φ0.30
PNZ-040 Φ0.50 Φ0.40
PNZ-050 Φ0.60 Φ0.50
O. D. : Outer diameter   I. D. : Inner diameter

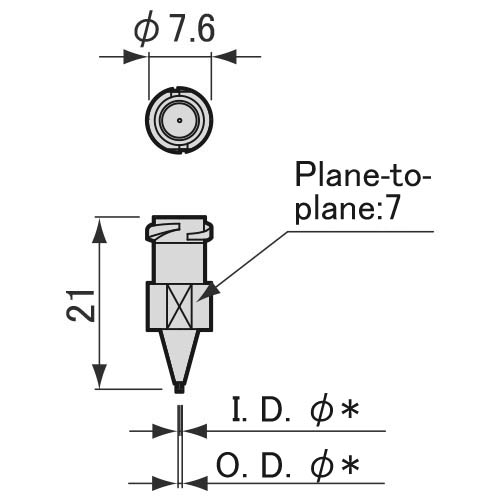

Dimensions

Precision taper nozzle
(mm)  O. D. : Outer diameter   I. D. : Inner diameter
