Single-component dispensers

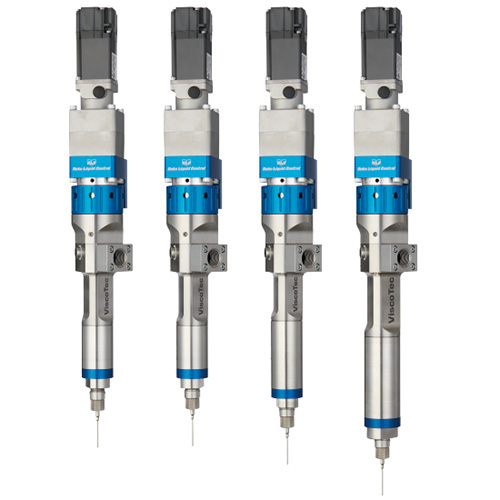

RD-Type High-accuracy Constant-Volume Dispensing UnitsScrew Pump Dispenser
- Provides accurate metering across a wide range of liquid viscosities.
- Features the Endless-Piston system for continuous, interruption-free discharge.
- The suckback technique eliminates drooling and ensures a clean nozzle.
- Simple, easily accessible mechanism for ease of maintenance.
- Easily incorporated in automated machinery.
Specifications
| Model No. | 4RD6 | 3RD8 | 3RD10 | 3RD12 |
|---|---|---|---|---|
| Theoretical discharge rate |
0.12ml/ revolution |
0.35ml/ revolution |
1.15ml/ revolution |
1.7ml/ revolution |
| Flow rate | 0.6 - 18 ml/min. |
1.75 - 52.5 ml/min. |
5.75 - 172.5 ml/min. |
8.5 - 255 ml/min. |
| Permissible liquid viscosities |
Low to high | |||
| Permissible liquid temperature range |
- 20 - + 80 | |||
| Atmospheric operating temperature range |
Ambient temperature: +10 - +40 Atmospheric pressure: 0.1MPa |
|||
| Weight | 2.5kg | 2.5kg | 2.8kg | 3kg |
| Maximum speed |
150rpm (Motor speed reduction ratio: 1:20) |
|||
| Model No. | 4RD6 | 3RD8 |
|---|---|---|
| Theoretical discharge rate |
0.12ml / revolution | 0.35ml / revolution |
| Flow rate | 0.6 - 18 ml/min. |
1.75 - 52.5 ml/min. |
| Permissible liquid viscosities |
Low to high | |
| Permissible liquid temperature range |
- 20 - + 80 | |
| Atmospheric operating temperature range |
Ambient temperature : +10 - +40 Atmospheric pressure : 0.1MPa |
|
| Weight | 2.5kg | 2.5kg |
| Maximum speed |
150rpm (Motor speed reduction ratio: 1:20) |
|
| Model No. | 3RD10 | 3RD12 |
|---|---|---|
| Theoretical discharge rate |
1.15ml / revolution | 1.7ml / revolution |
| Flow rate | 5.75 - 172.5 ml/min. |
8.5 - 255 ml/min. |
| Permissible liquid viscosities |
Low to high | |
| Permissible liquid temperature range |
- 20 - + 80 | |
| Atmospheric operating temperature range |
Ambient temperature : +10 - +40 Atmospheric pressure : 0.1MPa |
|
| Weight | 2.8kg | 3kg |
| Maximum speed |
150rpm (Motor speed reduction ratio: 1:20) | |
